Cha[@PortD,0] : bit; als Array?

1
2
3
Page 2 of 3

Harry

Moderator

Gender:
Location: zwischen Augsburg und Ulm
Age: 59
Posts: 2134
Registered: 03 / 2003

Subject:

Re: Cha[@PortD,0] : bit; als Array?

· Posted: 06.03.2018 - 11:45 · #9

Nicht schön, aber es funktioniert

Code

Procedure ReadStatus;        // Einlesen und aufbereiten der C&RStatus-Variablen
  Var D1, D2, Counter : Byte;
  Begin
    D1:=PinB;                // --> R8 C8 R7 C7 R6 C6 R5 C5
    D2:=PinF;                // --> C4 R4 C3 R3 C2 R2 C1 R1
    SetBit(CStatus.7,D1.1);  // CStatus --> Charge Slot 8,7,6,5,4,3,2,1
    SetBit(CStatus.6,D1.3);
    SetBit(CStatus.5,D1.5);
    SetBit(CStatus.4,D1.7);
    SetBit(CStatus.3,D2.0);
    SetBit(CStatus.2,D2.2);
    SetBit(CStatus.1,D2.4);
    SetBit(CStatus.0,D2.6);

    SetBit(RStatus.7,D1.0);  // RStatus --> Ready Slot 8,7,6,5,4,3,2,1
    SetBit(RStatus.6,D1.2);
    SetBit(RStatus.5,D1.4);
    SetBit(RStatus.4,D1.6);
    SetBit(RStatus.3,D2.1);
    SetBit(RStatus.2,D2.3);
    SetBit(RStatus.1,D2.5);
    SetBit(RStatus.0,D2.7);

  End ReadStatus;

Dauert ca. 32µs auf einem XMega256 @ 32 MHz.

Gruss
Harry

Merlin

Administrator

Gender:
Age: 24
Posts: 1409
Registered: 03 / 2005

Subject:

Re: Cha[@PortD,0] : bit; als Array?

· Posted: 06.03.2018 - 18:03 · #10

Shame the bits of RStatus and CStatus are that way round wrt to port pins. Were they the other way round you could have used

Code

CStatus := ( D1 and %10101010) or (D2 and %01010101);
RStatus := ( D1 and %01010101) or (D2 and %10101010);

The following uses a lookup table to reverse the bits.

Code

const
  cReverse : array[0..15] of byte = (%0000, %1000, %0100, %1100,
                                     %0010, %1010, %0110, %1110,
                                     %0001, %1001, %0101, %1101,
                                     %0011, %1011, %0111, %1111);

function ReverseByte( pByte : byte ) : byte;
begin
  Return( (cReverse[ pByte and $0F ] shl 4) or (cReverse[ pByte shr 4 ]) );
end;

Procedure ReadStatus; // read in and prepare the C & R status variables
  Var D1, D2, Counter: Byte;
  Begin
    D1: = PinB; // -> R8 C8 R7 C7 R6 C6 R5 C5
    D2: = PinF; // -> C4 R4 C3 R3 C2 R2 C1 R1
    CStatus := ReverseByte(( D1 and %10101010) or (D2 and %01010101));
    RStatus := ReverseByte(( D1 and %01010101) or (D2 and %10101010));

  End ReadStatus;

Harry

Moderator

Gender:
Location: zwischen Augsburg und Ulm
Age: 59
Posts: 2134
Registered: 03 / 2003

Subject:

Re: Cha[@PortD,0] : bit; als Array?

· Posted: 06.03.2018 - 19:46 · #11

Hello Merlin,

thanks i will test it

. Because the circuit does not yet exist (i am waiting for a component delivery), this is a good way to play with the simulator

.

Harry

Harry

Moderator

Gender:
Location: zwischen Augsburg und Ulm
Age: 59
Posts: 2134
Registered: 03 / 2003

Subject:

Re: Cha[@PortD,0] : bit; als Array?

· Posted: 07.03.2018 - 07:23 · #12

Hello merlin,

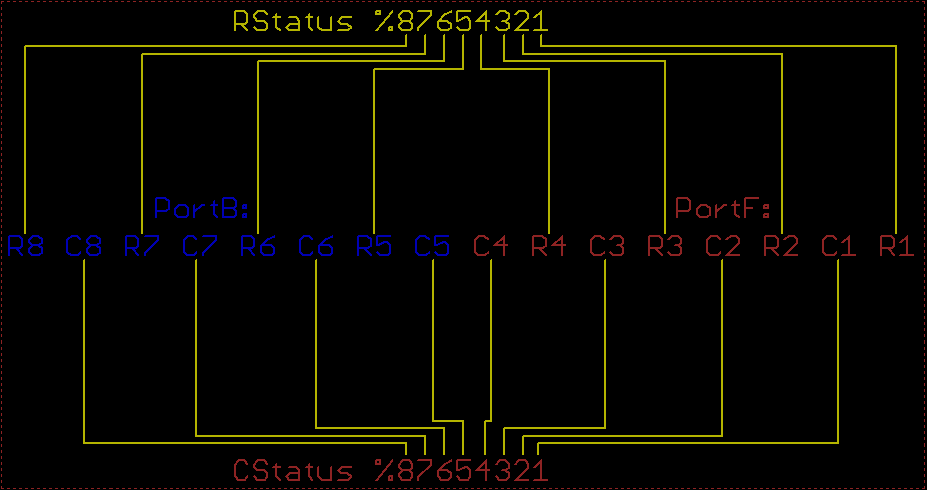

it doesn't work. Look at the Picture.

Harry

Attachments


Filename:	Bit-Change.png
Filesize:	6.93 KB
Title:
Download counter:	104

Merlin

Administrator

Gender:
Age: 24
Posts: 1409
Registered: 03 / 2005

Subject:

Re: Cha[@PortD,0] : bit; als Array?

· Posted: 07.03.2018 - 09:44 · #13

Yes, of course. Sorry.

Harry

Moderator

Gender:
Location: zwischen Augsburg und Ulm
Age: 59
Posts: 2134
Registered: 03 / 2003

Subject:

Re: Cha[@PortD,0] : bit; als Array?

· Posted: 07.03.2018 - 10:01 · #14

The Picture was wrong - sorry. Now its ok.

I test at this Moment this:

Code

RStatus:= (D1 and %10000000) or ((D1 and %00100000) shl 1) or
         ((D1 and %00001000) shl 2) or ((D1 and %00000010) shl 3) or
         ((D2 and %01000000) shr 3)  or ((D2 and %00010000) shr 2) or
         ((D2 and %00000100) shr 1) or (D2 and %00000001);

Harry

[Edit]It works

... 2.98µs

Code

Procedure ReadStatus2;       // read in and prepare the C & R status variables
  Var D1, D2 : Byte;
  Begin
    D1:= PinB;               // -> R8 C8 R7 C7 R6 C6 R5 C5
    D2:= PinF;               // -> C4 R4 C3 R3 C2 R2 C1 R1
    RStatus:=$00;
    RStatus:= (D1 and %10000000) or ((D1 and %00100000) shl 1) or
             ((D1 and %00001000) shl 2) or ((D1 and %00000010) shl 3) or
             ((D2 and %01000000) shr 3)  or ((D2 and %00010000) shr 2) or
             ((D2 and %00000100) shr 1) or (D2 and %00000001);

    CStatus:=$00;
    CStatus:=((D1 and %01000000) shl 1) or ((D1 and %00010000) shl 2) or
             ((D1 and %00000100) shl 3) or ((D1 and %00000001) shl 4) or
             ((D2 and %10000000) shr 4) or ((D2 and %00100000) shr 3) or
             ((D2 and %00001000) shr 2) or ((D2 and %00000010) shr 1);
  End ReadStatus2;

Merlin

Administrator

Gender:
Age: 24
Posts: 1409
Registered: 03 / 2005

Subject:

Re: Cha[@PortD,0] : bit; als Array?

· Posted: 07.03.2018 - 10:21 · #15

Minor improvement - you don't need to set your values to zero, they are completely defined anyway.

Avra

Schreiberling

Gender:
Location: Belgrade, Serbia
Age: 53
Homepage: rs.linkedin.com/in…
Posts: 653
Registered: 07 / 2002

Subject:

Re: Cha[@PortD,0] : bit; als Array?

· Posted: 10.03.2018 - 22:41 · #16

Quote by Harry

Das alles wird ein Akkutester für gebrauchte LiIon-Zellen der Bauform 18650.

I use Litokala Lii-500 for charging and real capacity measurement of NiCD, NiMh and LiIon. With 18650 it even doubles as a nice battery bank. After buying it I found that when chinese write 3000mAh they actually mean 200mAh.
http://lygte-info.dk/review/Re…%20UK.html
