Delay loop generator

· Posted: 03.01.2008 - 09:42 · #1

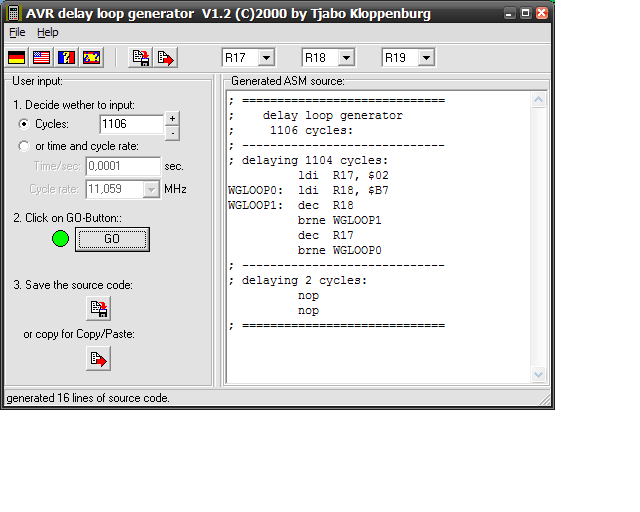

Handy ASM delay loop generator can be found at http://www.avrprojects.net/articles.php?lng=en&pg=67

EDIT: New link here: http://www.home.unix-ag.org/tjabo/avr/AVRdelayloop.html

Attachments


Filename:	ASM_Delay_Loop_Generator.PNG
Filesize:	23.88 KB
Title:	ASM_Delay_Loop_Generator.PNG
Download counter:	238

Merlin

Administrator

Gender:
Age: 24
Posts: 1406
Registered: 03 / 2005

Subject:

Re: Delay loop generator

· Posted: 03.01.2008 - 10:25 · #2

There are a few gotchas here.

R17 and R18 are an unexpected choice. R17 is _ACCA, but _ACCB (the obvious partner) is R16.

R17 in particular is well used so you need to PUSH and POP both registers which takes up a number of cycles (2 each - a total of 8 cycles).

Obviously you need to disable and enable interrupts, which might need to be taken into account.

Finally, in AVRCo assembler, the labels must be on separate lines.

Regards

Merlin.

Avra

Schreiberling

Gender:
Location: Belgrade, Serbia
Age: 53
Homepage: rs.linkedin.com/in…
Posts: 653
Registered: 07 / 2002

Subject:

Re: Delay loop generator

· Posted: 03.01.2008 - 11:17 · #3

I am aware of needed changes (it is designed for AVR Studio, not for AvrCo), but it is interesting anyway for some special applications. Registers are chosen from a drop list so we can choose ones which are more friendly with AvrCo and avoid PUSH/POP. I don't need this delay very often so it would not pay off to make this small application that generates real AvrCo code by my self, so I can live with it's faults that can be hand corrected.

Merlin

Administrator

Gender:
Age: 24
Posts: 1406
Registered: 03 / 2005

Subject:

Re: Delay loop generator

· Posted: 03.01.2008 - 11:27 · #4

Ah I see.

I missed the fact that it is an application that generates the code - even though it is obvious. Doh!

My apologies.

Merlin.

Administrator

Gender:
Location: Germany
Age: 24
Homepage: e-lab.de
Posts: 5558
Registered: 03 / 2002

Subject:

Re: Delay loop generator

· Posted: 03.01.2008 - 12:02 · #5

Hello Avra,

and what about the "uDelay" of AVRco? Or the sDelay? Or the mDelay? Or SysTimers?
Is there really a need for such a delay generator?

rolf

Avra

Schreiberling

Gender:
Location: Belgrade, Serbia
Age: 53
Homepage: rs.linkedin.com/in…
Posts: 653
Registered: 07 / 2002

Subject:

Re: Delay loop generator

· Posted: 04.01.2008 - 09:38 · #6

Once I needed that to generate very short and specific signals in interrupt. Another appliance that comes to my mind is tv/video signal generation. Speaking of video, that's one of the reasons I am looking forward for XMEGA. :lupe: With fast 2Msps ADC, frame grabbing is possible without external components (it can all fit in RAM since I need just 1 FPS and 32x32 in 16 grays).

Avra

Schreiberling

Gender:
Location: Belgrade, Serbia
Age: 53
Homepage: rs.linkedin.com/in…
Posts: 653
Registered: 07 / 2002

Subject:

Re: Delay loop generator

· Posted: 07.10.2010 - 09:16 · #7

Nice cycle accurate delay: from 1 cycle to 536 seconds.
http://www.avrfreaks.net/index…pe=project

Avra

Schreiberling

Gender:
Location: Belgrade, Serbia
Age: 53
Homepage: rs.linkedin.com/in…
Posts: 653
Registered: 07 / 2002

Subject:

Re: Delay loop generator

· Posted: 05.01.2011 - 02:59 · #8

And another one, which produces very compact ASM code:
http://bretm.home.comcast.net/~bretm/avrdelay.html

UPDATE: This is new URL: http://bretmulvey.com/avrdelay.html
