Xmega pin functions

Hello all,

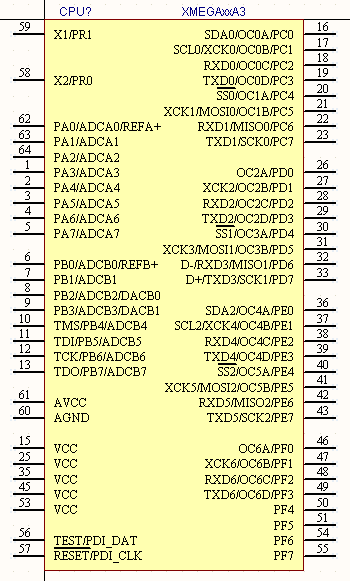

I have a little project which I'd like use to experiment with an XMega instead of "usual" megas.
But the first problem I found is the pin naming of the new CPU component I must define
in my schematic cad.

Respect to standard megas there are many Alternate Fuynctions on many pins
and it's not a problem; I'll draw a large component.
Because it's importat to me see the function of the pin I am connecting during schematic development.

But I have difficult to understand what are the exact functions on the pins and how these are enabled.
On Atmel datasheet I have seen only a table for "Alternate Pin Functions" but I do not understand the meaning of some columns, expecially for ADC and Timers.

Someone knows of datasheet or Appnotes which better explain the Alternate Pin Functions topic ?

Thank you,
Marco

Thank you very much Rolf.
Your tips and picture is a good starting point to understand the new logic in the xmega pinout.

I have also a question about the ISP-3 modification (resistor removal) necessary to program through PDI interface;
after removal of the two resistors as described in the manual, is it still possible program normal Megas via JTAG ?

Regards,
Marco

Hi Rolf,

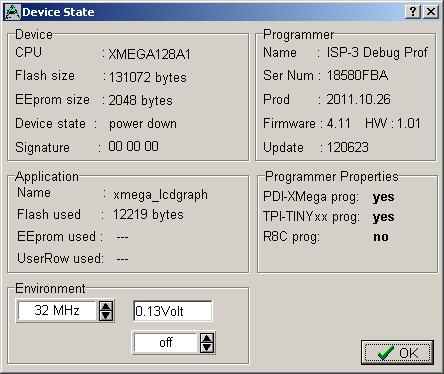

I don't remember the exact date I returned the programmer for upgrade...
There is a label with this number: 18580FBA [1.01]
Is there any ID on pcb to understand if it's an old version ?

Marco

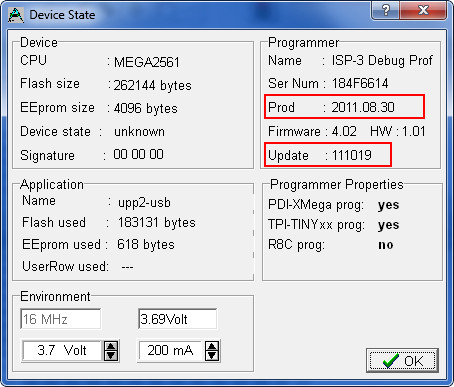

Than you Rolf !
I am so used to see that page of AVRprog for device programming
that I completely removed the presence of other informations...

So mine should be ok ?
